Magnetic Roll Separator:

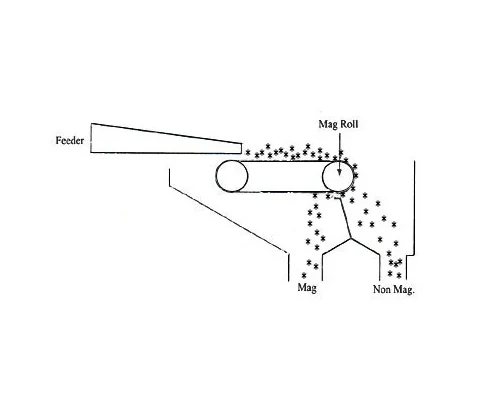

A short special fabric conveyor belt covers the magnetic roll and a tensioning idle roll driven by a motor. A feeder discharges material on the belt on continues controlled rate of flow at uniform layer thickness. The ferromagnetic and paramagnetic particles adhere to the belt while the non-magnetic particles flow freely off the end of the conveyor. The division of paramagnetic and non-magnetic adjusted by using a splitter plate located below the belt. It can be configured stacked in any number of passes to suit the user requirement.

Application:

A short special fabric conveyor belt covers the magnetic roll and a tensioning idle roll driven by a motor. A feeder discharges material on the belt on continues controlled rate of flow at uniform layer thickness. The ferromagnetic and paramagnetic particles adhere to the belt while the non-magnetic particles flow freely off the end of the conveyor. The division of paramagnetic and non-magnetic adjusted by using a splitter plate located below the belt. It can be configured stacked in any number of passes to suit the user requirement.

Technical Features
  • Standard 2.5,2,1.5,1,0.75,0.5 and 0.25-meter wide magnetic roll. Also available in a laboratory scale model with readily interchangeable rolls of 100 mm length
  • Supplied with a vibrating feeder to suit the roll width
  • Simple conveyor belt tensioning and tracking system accessible at the sides of the machine
  • Fixed or-variable speed roll drive options. Fractional HP motor having voltage and frequency to suit user
